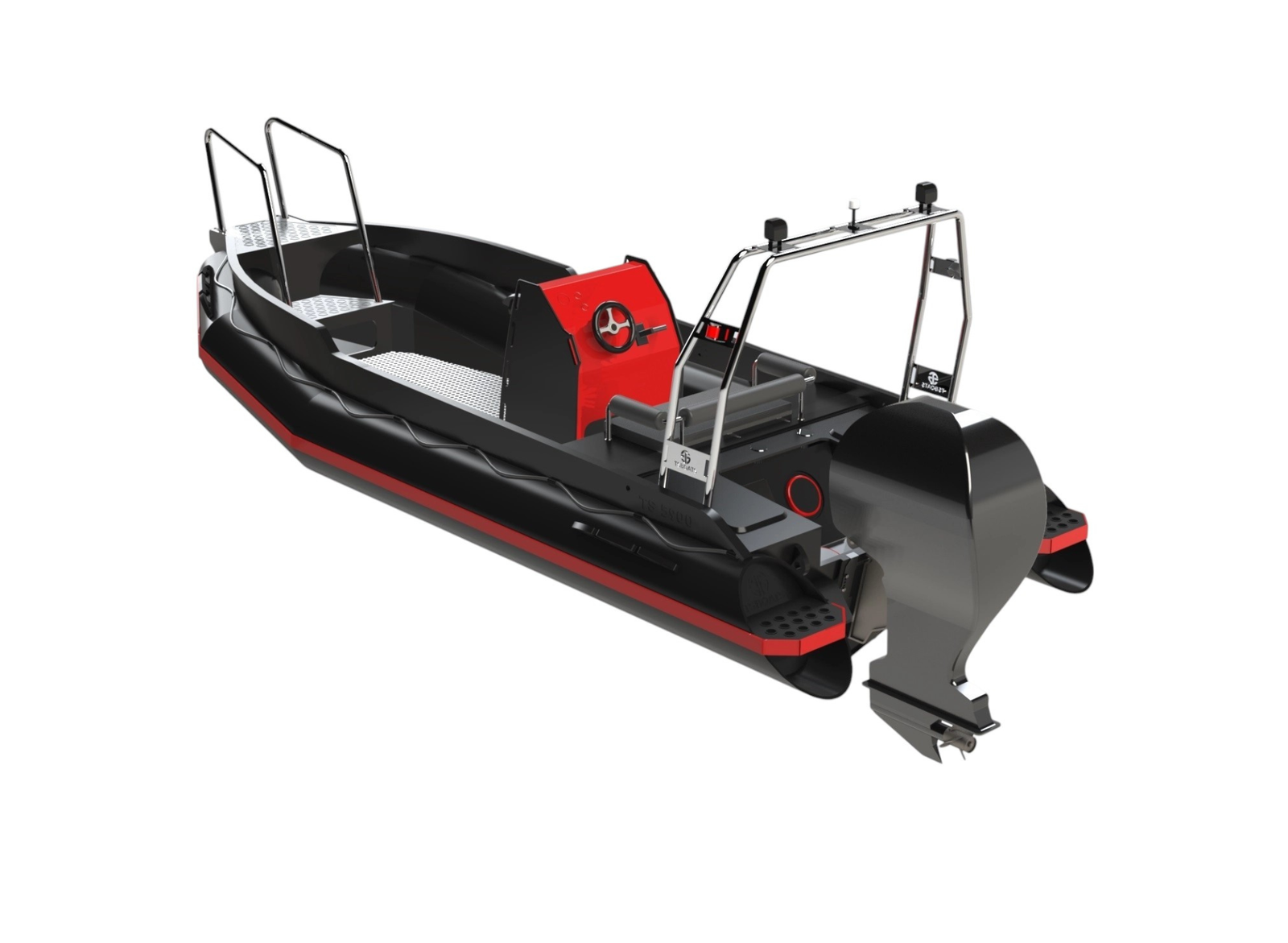

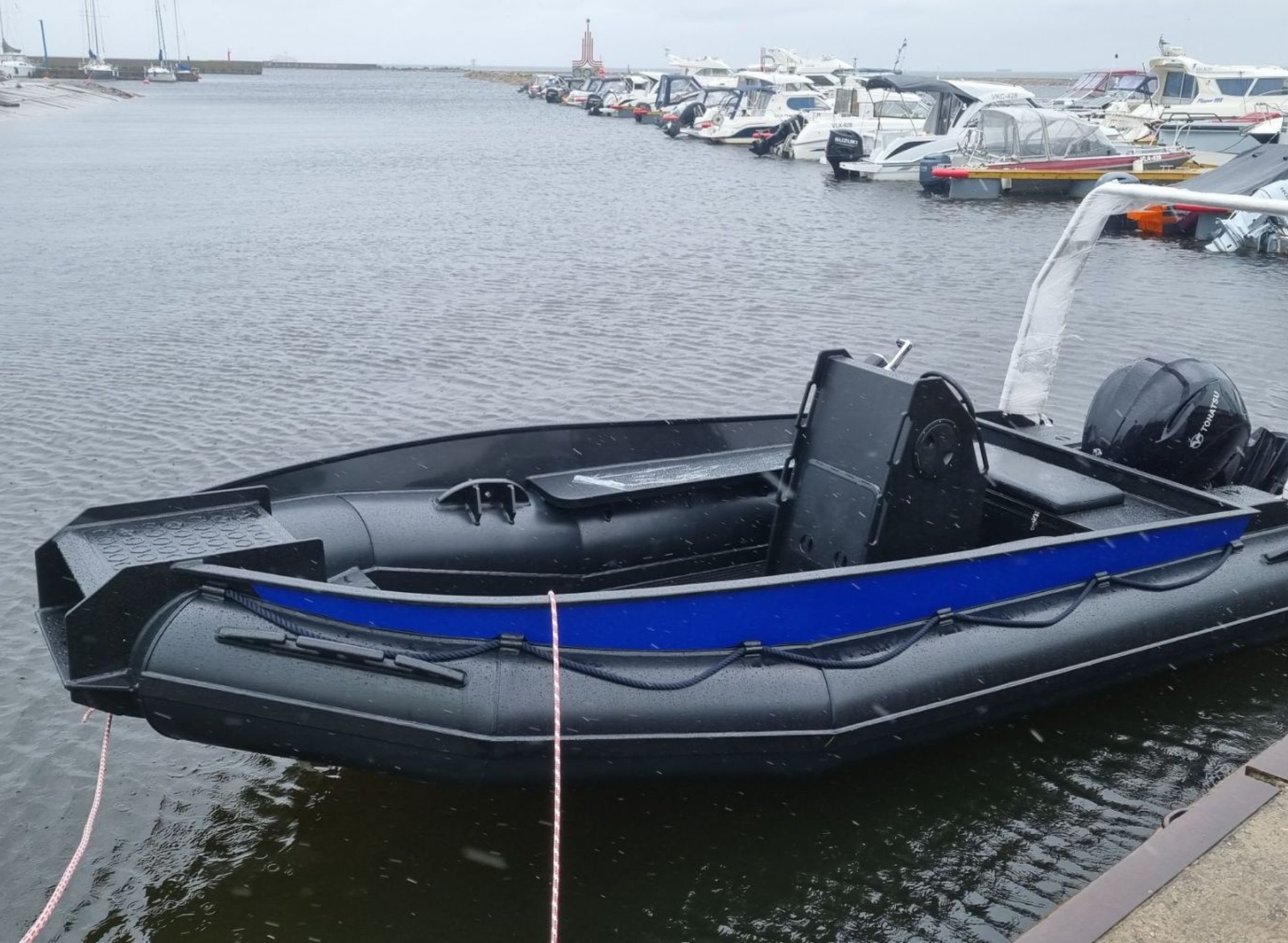

MODEL TS BOATS 5900
Technical specification
Length (LOA): 5.9 m
Beam: 2.3 m
Draft: 0.45 m
Hull weight: 850 kg
Max load: 1000 kg
Capacity: 8 persons
Fuel tank: 130 L
Deadrise: 22°
Transom: UL Type
Recommended engine: from 70 HP
Max engine power: 115 HP
Construction and Features:
Hull material: HDPE (black color)
Side protection: 10 mm HDPE (red, UV-resistant)
Foam filling: inside the 500 mm tube
Self-draining deck: 2 drainage outlets (D 50 mm) in the transom
Storage compartments:
Front storage compartment with a door
Technical storage compartments in the aft (2 pcs)
Aft storage compartments (3 pcs)
Seating:
Soft seats on aft storage compartments (3 pcs)
Side benches (2 pcs, L 2000 x 230 mm)
Console:
Center console with an access hatch
Windshield with stainless steel railing
Electrical system:
Main switch (Bluesea)
Switch panel (4 switches, Bluesea)
Battery holders under the console (2 pcs)
Fuel system:
130 L built-in fuel tank
Fuel inlet (D 50 mm) in the aft
Fuel tank and compartment ventilation system
External fuel separator
Additional equipment:
Towing points in the aft (2 pcs)
Mooring cleats (4 pcs)
Bow railings (stainless steel)
Safety rope around the boat (D 18 mm)
Navigation equipment:
A-frame in the aft for navigation lights (stainless steel)
Top light
Certification: CE, category C
